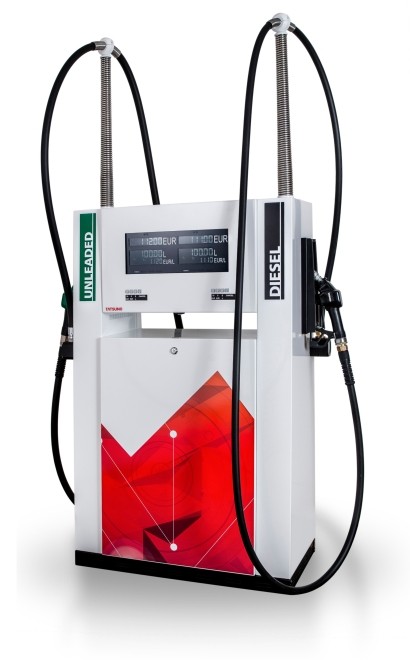

SHARK Junior & Economy
fuel dispensers
1 to 2 hoses / 1 to 2 products
gasoline, diesel, biodiesel, E85
2 versions - JUNIOR (1 product), ECONOMY (2 products)
height 1400mm
free hanging hoses
1 to 2 hoses / 1 to 2 products
gasoline, diesel, biodiesel, E85
2 versions - JUNIOR (1 product), ECONOMY (2 products)
height 1400mm
free hanging hoses
Files for Download :
- Leaflet (en; 6/2016) / pdfDownload
Specifications
Fuel dispensers TATSUNO EUROPE of the series SHARK Junior and SHARK Economy serve for dispensing of liquid oil products into road vehicles on retail and commercial outlets. Dispensers SHARK Junior are of a one-sided or double-sided, one-product, single-hose design. Dispensers SHARK Economy are of double-product, double-hose design; two cars can be filled simultaneously from both hoses, and moreover each hose can dispense a different fuel product. The fuel dispensers are equipped by the high-quality Japan hydraulic system TATSUNO and by the reliable electronic calculator PDEX5 . The fuel dispensers are operated both in the manual mode (i.e. off-line), and in the automatic mode, where the fuel dispenser is linked with the kiosk control system and the data concerning volume, sum and price are transmitted to POS.
Specification
- Long life and high accurate hydraulics TATSUNO (Japan)
- Reliable electronic counter PDEX5
- LCD displays (7-6.5-5) with electronically controlled LED backlight
- Modern compact design
- Accurate pulse generators TATSUNO (Japan) with encrypted AES 128 data transfer
- Electronic totalizers and electromechanical totalizer for every dispensing nozzle
- Infra-red remote controller for dispenser setup
- Vapour recovery system with electronic signalling and monitoring system (optional)

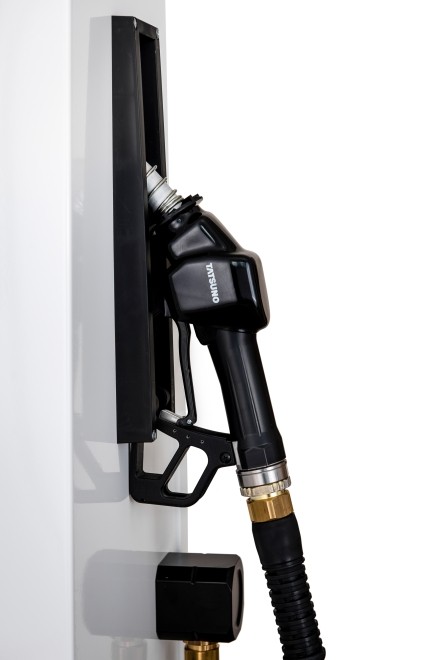

- Dispensing nozzles TATSUNO Ultra (Japan), hoses ZVA-ELAFLEX (Germany)
- Free hanging hoses with hose mast (optionally)
- Proportional valves for preselection of dispensed amount/volume
- 4 or 12buttons keypad for amount/volume preselection
- MIN/MAX flow button (optionally) - 130/80 or 80/40 or 40/5 LPM (motobikes)
- Any model colour - on customers request
- Possibility to install payment terminal - on customers request
- Temperature volume correction to volume at 15°C (optionally)
- Diagnostic line (optionally)
Technical Specifications
| Delivered flow rate: | standard 40 L/min high 80 L/min ultra high 130 L/min to 160 L/min |
| Accuracy of dispensing: | ± 0.15% (at min. delivery 2 litres) |
| Maximum pressure: | standard 0.18 MPa high 0.25 MPa |
| Electric motors: | thrее-phase, 3x400V/50Hz, 0.75kW, 1395 rpm |
| Counter power supply: | 230V +10% -15%, 50Hz max.85VA |
| Power supply of the switching elements: | 230V, 50Hz |
| Operating temperature: | standard -20°C ÷ +40°C advanced -40°C ÷ +50°C |
Basic models
 |
BMP511.SD (SHARK Junior) |
 |
| BMP511.SD-HS (SHARK Junior) 1 petrol product, 1 hose + hose spring |
 |
| BMP522.SXD (SHARK Economy) 2 petrol products, 2 hoses |
 |
| BMP522.SXD (SHARK Economy) 2 petrol products, 2 hoses + hose springs |
