OCEAN Tower /CNG
CNG dispensers
1 to 4 filling hoses
CNG - compressed natural gas (methane)
height 1900mm

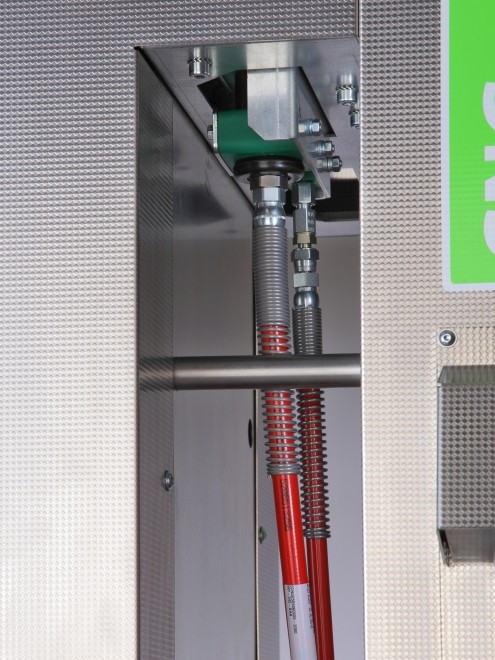

free hanging hoses
1 to 4 filling hoses
CNG - compressed natural gas (methane)
height 1900mm
free hanging hoses
Specifications
The CNG dispensers TATSUNO series OCEAN Tower /CNG serve for dispensing of compressed natural gas (CNG) on filling stations for road vehicles. OCEAN Tower /CNG dispensers are one-sided or double-sided with one to four hoses. The CNG dispensers are equipped by the high-quality pressure system, Coriolis mass flow meter and by the reliable electronic calculator TBELTM. The CNG dispensers are operated both in the manual mode (i.e. off-line), and in the automatic mode, where the fuel dispenser is linked with the kiosk control system and the data concerning volume, sum and price are transmitted to POS.
Dispenser's documents:
Dispenser's documents:
- Overview of dispenser models, dimensions
- Installation and user manuals
- ATEX certificates
- OIML R139 certificates
- EU Declaration of Conformity
Specifications
- Accurate Coriolis mass flow meters
- Reliable electronic calculator TBELTM
- LCD displays (7-6.5-5) or multimedia displays with controlled LED backlight
- Modern compact design
- Electronic and electromechanical totalizers for every dispensing nozzle
- Infra-red remote controller for dispenser setup
- Electromagnetic valves for sequential control of pressure sections
- 4 or 12 key keypad for presetting the amount/volume on the dispenser (optional)
- Color design according to the customer's wishes
- Temperature compensation of the filling to max. quantity at 20,0 MPa (200 bar) and 15°C (optional)
- Intelligent switching of the pressure sections
- Signal bacons + Collective Error signal (optional)
- Diagnostic line (optional)
Technical specification
| Filling performance: | standard, till 30 kg/min increased, till 70 kg/min |
| Accuracy: | ± 1.5% (at min. 2 kg) |
| Maximum working pressure: | 30,0.MPa (300 bar) |
| Test pressure: | 43,0 MPa (430 bar) |
| Power supply: | 230V +10% -15%, 50Hz, max.300VA |
| Power of switching elements: | +24VDC |
| Ambient temperature range: | standard -25°C ~ +55°C special -40°C ~ +55°C |
| Gas temperature range: | standard -25°C ~ +55°C special -40°C ~ +70°C |
Basic models
 |
| BMP4012.OWD/CNG - 1 pressure input, 2 hoses BMP4022.OWD/CNG - 2 pressure inputs, 2 hoses BMP4032.OWD/CNG - 3 pressure inputs, 2 hoses |
 |
| BMP4014.OWD/CNG/H/H - 1 pressure input, 4 hoses BMP4024.OWD/CNG/H/H - 2 pressure inputs, 4 hoses BMP4034.OWD/CNG/H/H - 3 pressure inputs, 4 hoses |
