OCEAN Hero
multiproduct fuel dispensers
1 to 8 hoses / 1 to 4 products
gasoline, diesel, biodiesel, E85, AVGAS
design version = H-type
height 2194 mm
free hanging hoses or with hose retractor
1 to 8 hoses / 1 to 4 products
gasoline, diesel, biodiesel, E85, AVGAS
design version = H-type
height 2194 mm
free hanging hoses or with hose retractor
Files for Download :
- Leaflet (en; 10/2022) / pdfDownload
Specifications
The fuel dispensers TATSUNO of series OCEAN Hero serve for dispensing of liquid oil products into road vehicles on retail and commercial outlets. They are progressive single- or double-sided fuel dispensers with one to ten hoses (max. four hoses on each fuel dispenser side) for dispensing of an optional 1 to 4 products. The fuel dispensers are equipped with a high-quality Japan hydraulic system TATSUNO and with a reliable electronic calculator. All fuel dispensers of the series OCEAN Hero are operated both in the manual mode (i.e. off-line), and in the automatic mode, where the fuel dispenser is linked with the kiosk control system and the data concerning volume, sum and price are transmitted to POS.
Dispenser's documents:
- Overview of dispenser models, dimensions
- Installation and user manuals
- ATEX certificates
- MID certificates
- Vapour recovery system certificates
- EU Declaration of Conformity
Specifications
- New type of long life and high accurate hydraulics TATSUNO MVP-X (Japan)
- Reliable electronic counter PDEX5

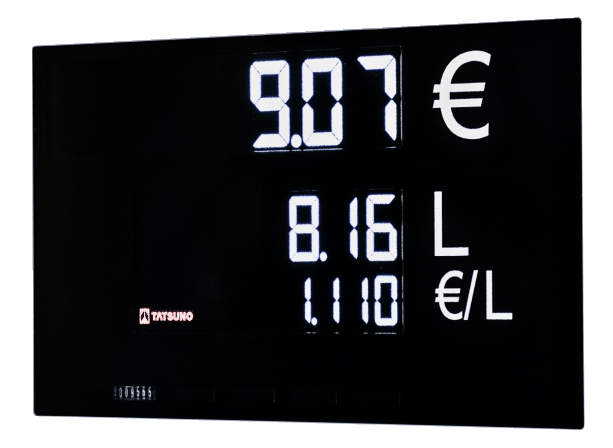

- LCD displays (7-6.5-5), or multimedia displays with electronically controlled LED backlight
- colour product unit prices display (optionally)
- Modern compact design
- Accurate pulse generators TATSUNO (Japan) with encrypted AES 128 data transfer
- Electronic totalizers and electromechanical totalizer for every dispensing nozzle
- Infra-red remote controller for dispenser setup
- Vapour recovery system with electronic signalling and monitoring system (optionally)
- Dispensing nozzles TATSUNO Ultra (Japan), hoses ZVA-ELAFLEX (Germany)
- Reliable hose retraction system with long active nozzle radius
- Proportional valves for preselection of dispensed amount/volume
- 4 or 12buttons keypad for amount/volume preselection
- MIN/MAX flow button (optionally) - 130/80 or 80/40 or 40/5 LPM (motobikes)
- Any model colour - on customers request
- Possibility to install multimedia module or payment terminal - on customers request
- Temperature volume correction to volume at 15°C (optionally)
- Diagnostic line (optionally)
Technical Specifications
| Delivered flow rate: | standard 40 L/min high 80 L/min ultra high 130 L/min to 150 L/min. |
| Accuracy of dispensing: | ± 0.15% (at min. delivery 2 litres) |
| Maximum pressure: | standard 0.18 MPa high 0.25 MPa |
| Electric motors: | thrее-phase, 3x400V/50Hz, 0.75kW, 1395 rpm |
| Counter power supply: | 230V +10% -15%, 50Hz max.150VA |
| Power supply of the switching elements: | +24VDC |
| Operating temperature: | standard version -20°C ~ +40°C special version -40°C ~ +50°C |
Basic models
 |
| OCEAN BMP4012.OHD 1 product, 2 dispensing nozzles (front side) NARROW version (1080mm) |
 |
| OCEAN BMP4022.OHD-S 2 products, 2 dispensing nozzles (on side) NARROW version (1080mm) |
 |
| OCEAN BMP4024.OHD 2 products, 4 dispensing nozzles (front side) NARROW version (1080mm) |
 |
| OCEAN BMP4036.OHD 3 products, 6 dispensing nozzles (front side) WIDE version (1280mm) |
 |
| OCEAN BMP4048.OHD 4 product, 8 dispensing nozzles (front side) WIDE version (1280mm) |
