OCEAN Tower WSE
1 to 2 hoses
WSE - water & soap & ethanol solution
height 1900mm
free hanging spiral hoses
The TATSUNO dispensers of the OCEAN Tower WSE series (WSE - Water & Soap & Ethanol) are used for dispensing of the windshield washer fluid into road vehicles at service stations. They are modern single-sided or double-sided dispensers with one or two dispensing spiral hoses. These dispensers of modern construction are equipped with high-quality Japanese TATSUNO hydraulics and a reliable electronic counter. The WSE dispenser can be supplemented with a suction pump and a storage tank with a capacity of 250L or 500L. All dispensers in the OCEAN Tower WSE type series work both in manual mode (ie independently) and in automatic mode, when the dispenser is connected to the control system in the kiosk and the data concerning volume, amount and price are transmitted to the cash register.
Dispenser's documents:
- Overview of dispenser models, dimensions
- Installation and user manuals
- ATEX certificates
- MID certificates
- EU Declaration of Conformity
Specifications
- Long life and high accurate hydraulics TATSUNO (Japan)
- Reliable electronic counter PDEX5
- LCD displays (7-6.5-5), or multimedia displays with electronically controlled LED backlight
- Modern compact design
- Accurate pulse generators TATSUNO (Japan) with encrypted AES 128 data transfer
- Electronic totalizers and electromechanical totalizer for every dispensing nozzle
- Infra-red remote controller for dispenser setup
- Spiral dispensing hoses with long active nozzle radius (6 m)
- Proportional valves for preselection of dispensed amount/volume
- 4 or 12buttons keypad for amount/volume preselection
- Any model colour - on customers request
- Variant with suction pump and storage tank 250L or 500L, see variants /T250 /T500 (optional)
- Possibility to install multimedia module or payment terminal - on customers request (optional)
- Diagnostic line (optional)
Technical specifications
| Flow rate: | 10 L/min |
| Accuracy: | ± 0.15% (at min. delivery 2 litres) |
| Maximum pressure: | 0.35 MPa |
| Counter power supply: | 230V +10% -15%, 50Hz max.150VA |
| Power supply of the switching elements: | +24VDC |
| Operating temperature: | standard version -20°C ~ +40°C special version -40°C ~ +50°C |
 |

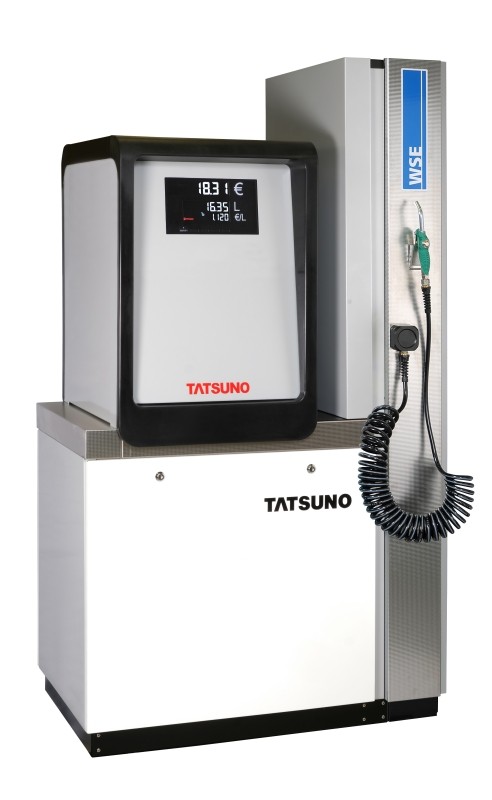

| OCEAN BMP4012.OWD/WSE 2 spiral hoses  |

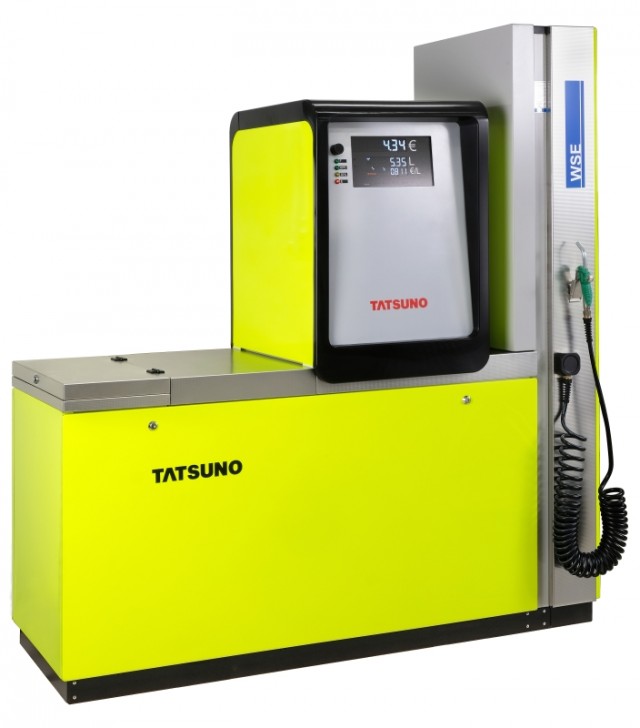

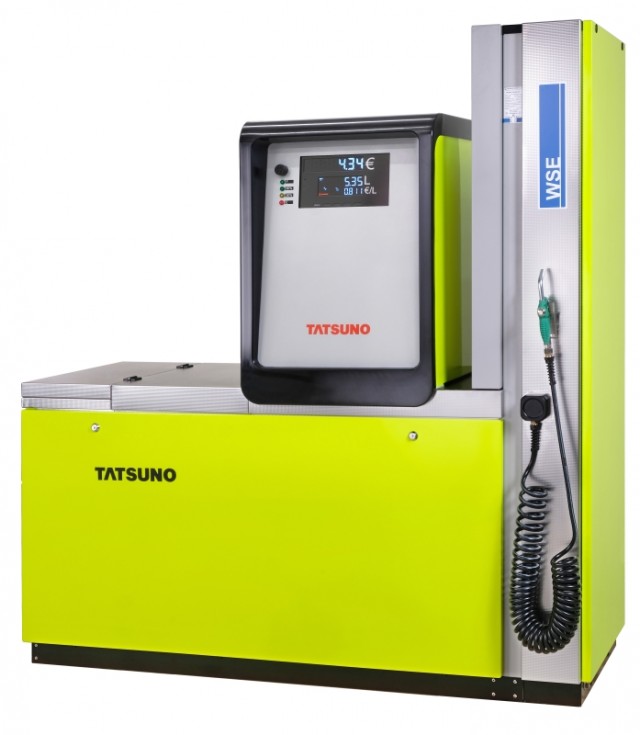

| OCEAN BMP4012.OWD/WSE/T250 2 spiral hoses + suction pump and tank with storage volume 250L |
 |
| OCEAN BMP4012.OWD/WSE/T500 2 spiral hoses + suction pump and tanks with total storage volume 500L |
