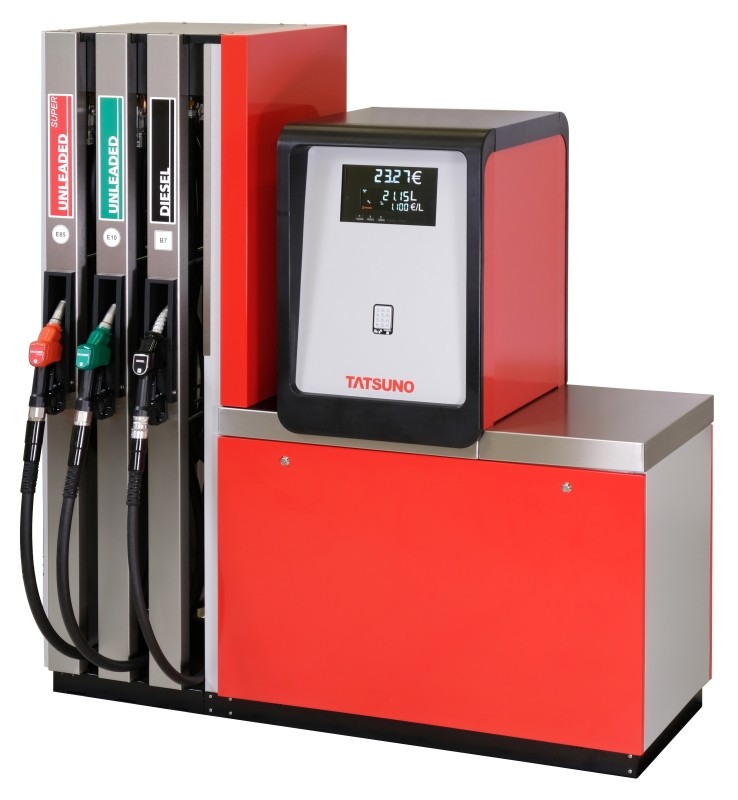

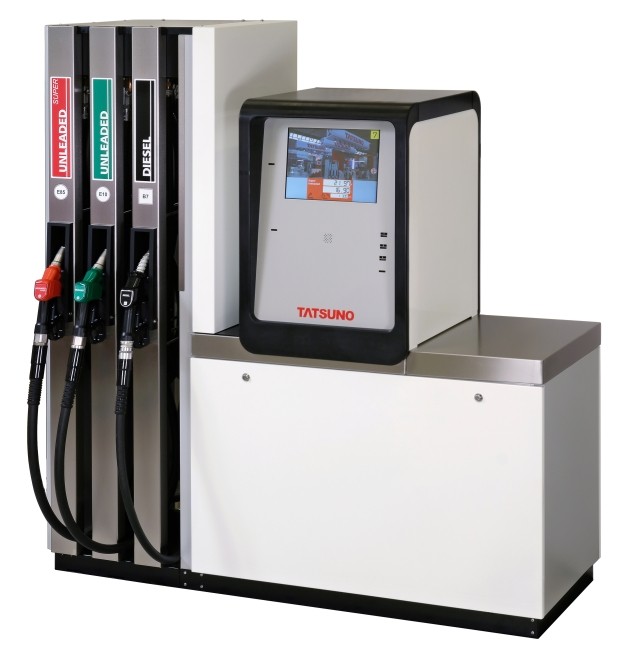

OCEAN Tower

multiproduct fuel dispensers
1 to 12 hoses / 1 to 6 products
gasoline, diesel, biodiesel, E85, aviation gasoline
height 1900mm
hose retraction system - active nozzle radius 4.7 m

Files for Download :
  • Bulletin / pdfDownload
  • Presentation / pdfDownload

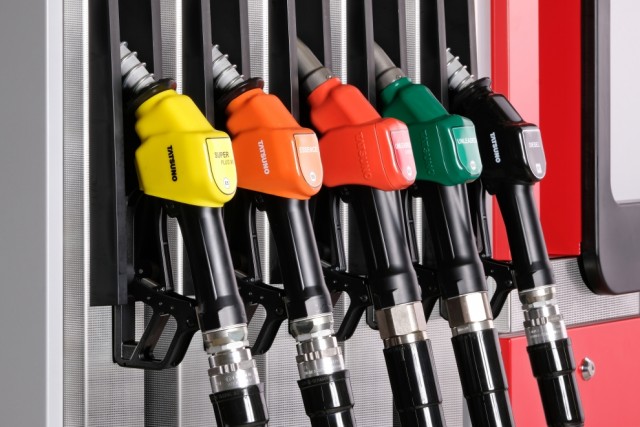

TATSUNO Ultra nozzles FN-1024 (40 L/min)TATSUNO Ultra nozzles FN-1025 (VR, 40 L/min)TATSUNO Ultra nozzles FN-1029 (80 L/min)


Specifications
The fuel dispensers TATSUNO of series OCEAN Tower serve for dispensing of liquid oil products into road vehicles on retail and commercial outlets. They are progressive single- or double-sided fuel dispensers with one to twelve hoses (max. six hoses on each fuel dispenser side) for dispensing of an optional 1 to 6 products. The fuel dispensers are equipped with a high-quality Japanese hydraulic system TATSUNO and with a reliable electronic calculator. All fuel dispensers of the series OCEAN are operated both in the manual mode (i.e. off-line), and in the automatic mode, where the fuel dispenser is linked with the kiosk control system and the data concerning volume, amount and price are transmitted to POS.

Dispenser's documents:
  • Overview of dispenser models, dimensions
  • Installation and user manuals
  • ATEX certificates
  • MID certificates
  • Vapour recovery system certificates
  • EU Declaration of Conformity

Specifications

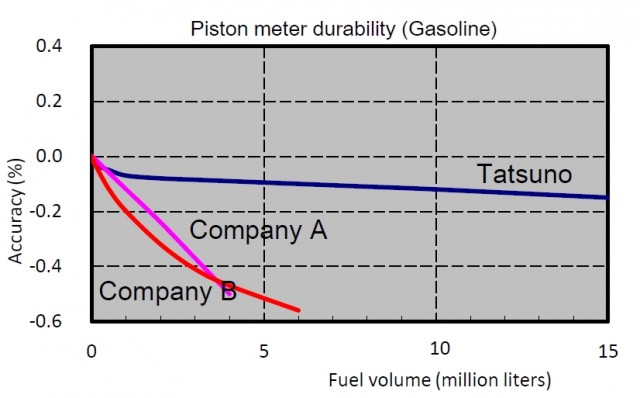

  • New type of long life and high accurate hydraulics TATSUNO MVP-X (Japan)
  • Reliable electronic counter PDEX5
  • LCD displays (7-6.5-5), or multimedia displays with electronically controlled LED backlight
  • Modern compact design
  • Accurate pulse generators TATSUNO (Japan) with encrypted AES 128 data transfer
  • Electronic totalizers and electromechanical totalizer for every dispensing nozzle
  • Infra-red remote controller for dispenser setup
  • Vapour recovery system with electronic signalling and monitoring system (optionally)
  • Dispensing nozzles TATSUNO Ultra (Japan), hoses ZVA-ELAFLEX (Germany)
  • Reliable hose retraction system with long active nozzle radius (4.7 m)
  • Proportional valves for preselection of dispensed amount/volume
  • 4 or 12buttons keypad for amount/volume preselection
  • MIN/MAX flow button (optionally) - 130/80 or 80/40 or 40/5 LPM (motobikes)
  • Any model colour - on customers request
  • Possibility to install multimedia module or payment terminal - on customers request
  • Temperature volume correction to volume at 15°C (optionally)
  • Diagnostic line (optionally)


Technical Specifications


Flow rate:


standard 40 L/min
high 80 L/min
ultra high 130 L/min to 150 L/min
Accuracy:± 0.15% (at min. delivery 2 litres)
Maximum pressure:

standard 0.18 MPa
high 0.25 MPa
Electric motors:thrее-phase, 3x400V/50Hz, 0.75kW
Counter power supply:

230V +10% -15%, 50Hz
max.150VA
Power supply of the switching elements:+24VDC
Operating temperature:

standard version -20°C ~ +40°C
special version -40°C ~ +50°C
Basic models




OCEAN BMP4012.OWD
1 product, 2 hoses

OCEAN BMP4024.OWD
2 products, 4 hoses

OCEAN BMP4036.OWD
3 products, 6 hoses

OCEAN BMP4048.OWD
4 products, 8 hoses

OCEAN BMP40510.OWD
5 products, 10 hoses

OCEAN BMP40612.OWD
6 products, 12 hoses
