OCEAN Tower combi - LPG & CNG

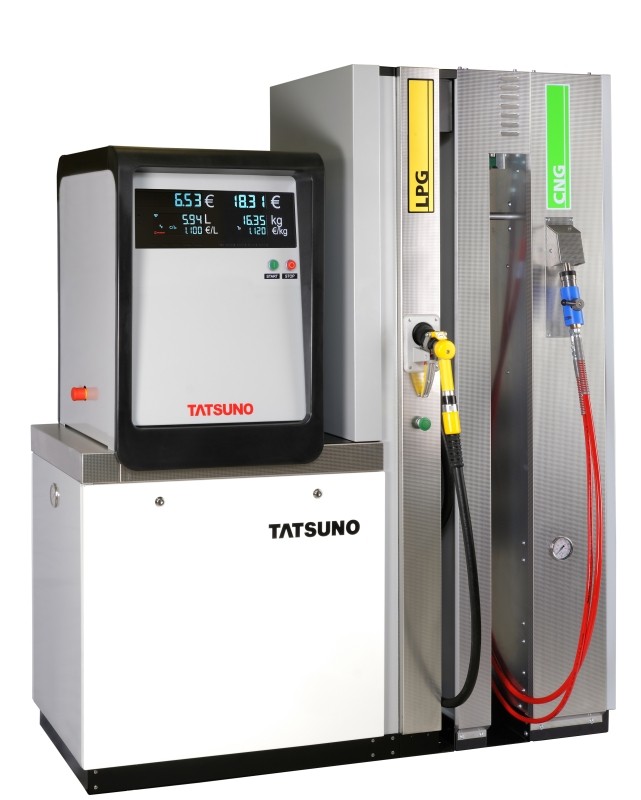

These combined TATSUNO dispensers of the OCEAN Tower series are used for dispensing liquefied propane butane (LPG) and compressed natural gas (CNG) at public filling stations. They are modern single-sided or double-sided dispensers with two to six dispensing hoses (max. three dispensing hoses on each side of the dispenser) for delivering any of two products LPG & CNG. These dispensers of modern construction are equipped with high-quality Japanese TATSUNO hydraulics and a reliable electronic counter. All combined dispensers in the OCEAN Tower type series are operated both in the manual mode (i.e. off-line), and in the automatic mode, where the fuel dispenser is linked with the kiosk control system and the data concerning volume, amount and price are transmitted to POS.

Dispenser's documents:

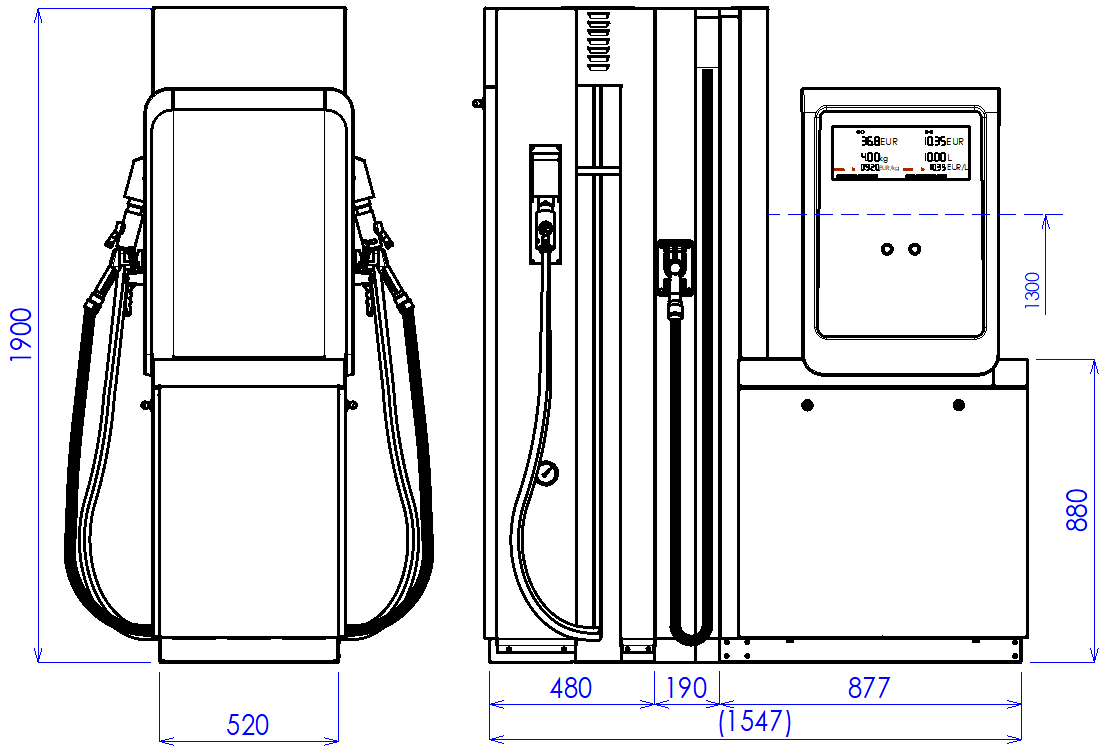

• Overview of dispenser models, dimensions
• Installation and user manuals
• ATEX certificates
• MID and OIML 139 certificates
• EU Declaration of Conformity

Specifications

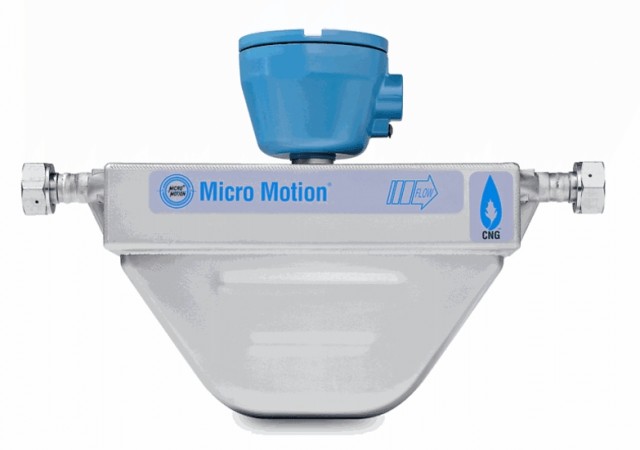

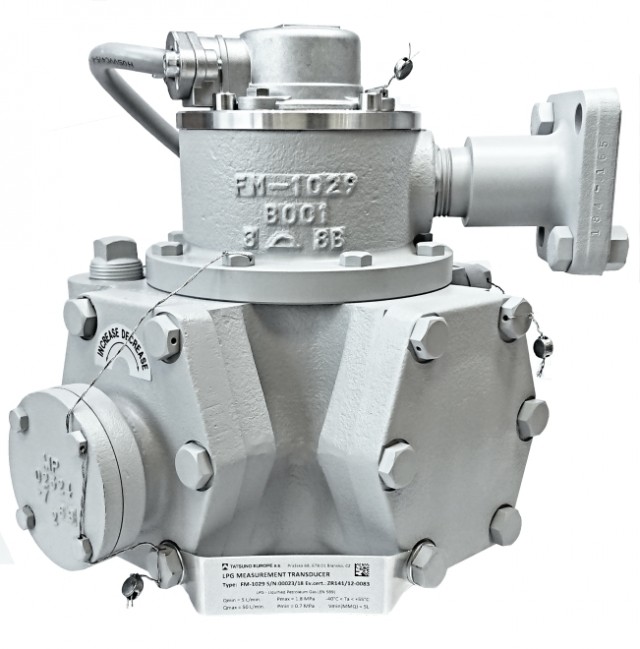

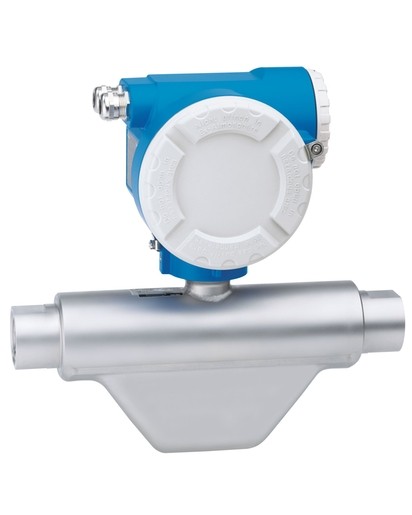

• Long life and high accurate LPG hydraulics TATSUNO (japan) and CNG mass meters
• Reliable electronic counter PDEX5 (for LPG) and TBELTM (for CNG)

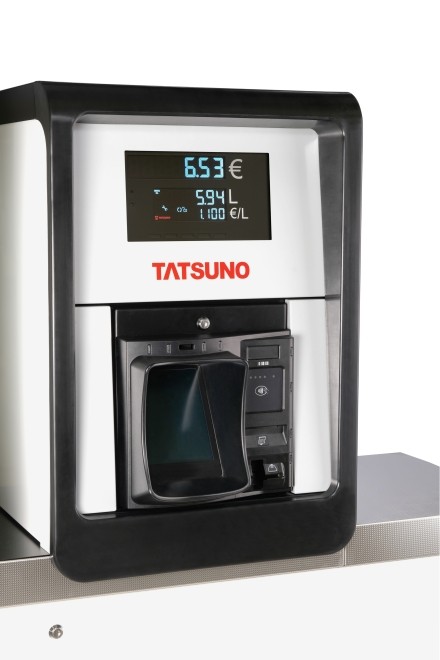

• LCD displays (7-6.5-5), or multimedia displays with electronically controlled LED backlight
• Modern compact design
• Accurate pulse generators TATSUNO (Japan) with encrypted AES 128 data transfer
• Electronic totalizers and electromechanical totalizer for every dispensing nozzle
• Infra-red remote controller for dispenser setup

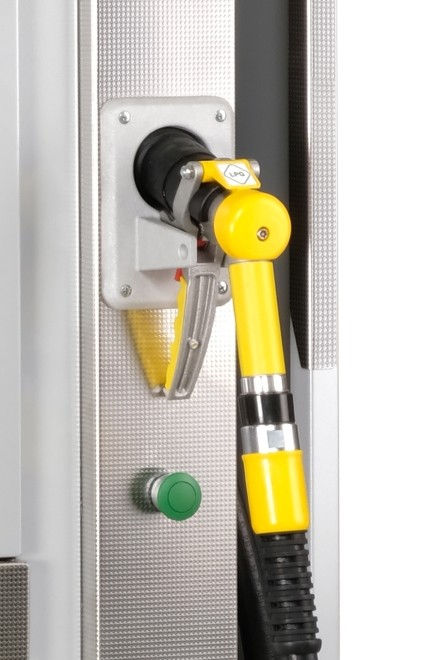

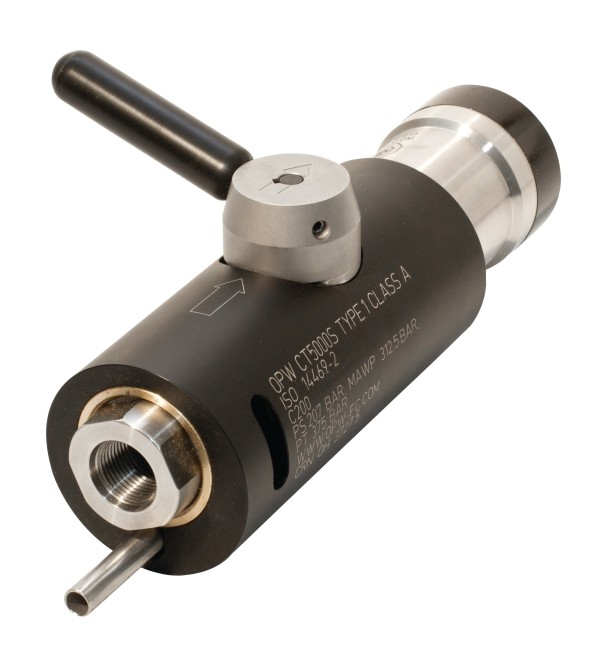

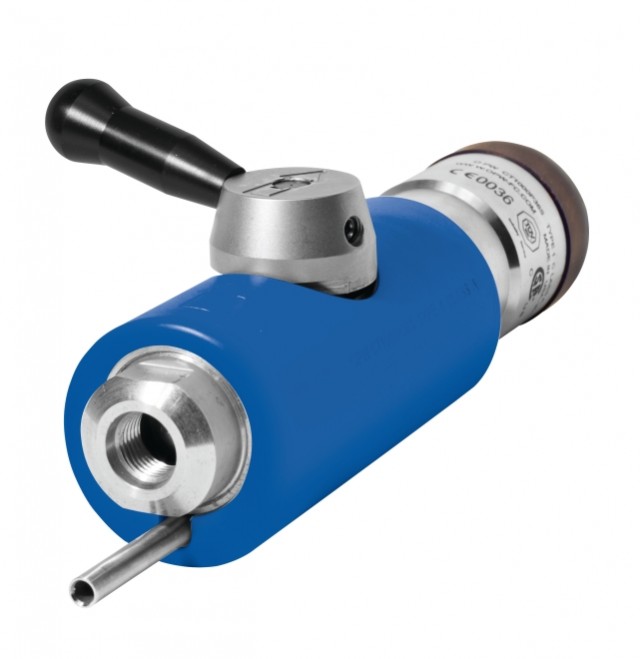

• Dispensing nozzles OPW (USA) and LPG Group (Italy)
• Reliable LPG hose retraction system with long active nozzle radius

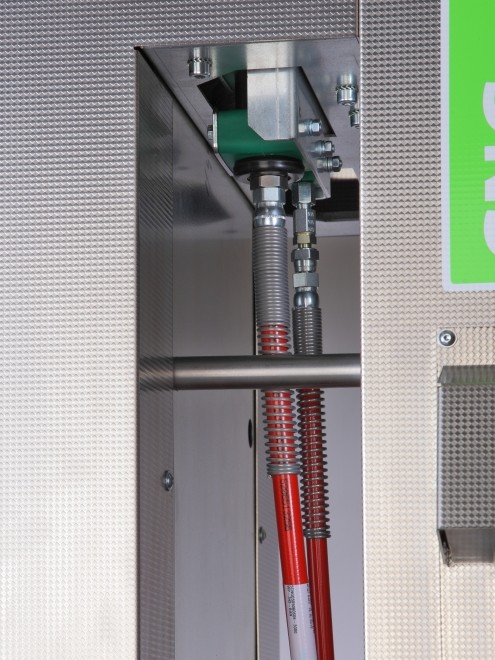

• Free hanging CNG hoses
• Proportional valves for preselection of dispensed amount/volume
• 4 or 12buttons keypad for amount/volume preselection
• Color design according to the customer's wishes, standard design
• Possibility to install multimedia module or payment terminal - on customers request
• Temperature volume correction to volume at 15°C  for LPG (optional)
• Temperature compensation of the CNG filling to max. quantity at 20,0 MPa (200 bar) and 15°C  (optional)
• Intelligent switching of the pressure sections (CNG)
• Signal bacons + Collective Error signal (optional)
• Diagnostic line (optionally)

Technical Specifications



Flow rate            - LPG: - CNG:	35-50 L/min. 30 kg/min or 70 kg/min. (/H)
Accuracy of dispensing:       - LPG:  - CNG:	± 0.30% (at min. delivery 5 litres) ± 1.5% (at min. delivery 2kg)
Maximum pressure:               - LPG: - CNG:	1.8 MPa 30.0 MPa
Counter power supply:	230V +10% -15%, 50Hz max.300VA
Power supply of the switching elements:	+24VDC
Operating temperature:	-20°C ~ +40°C
