OCEAN Tower combi - LPG & WSE

These combined TATSUNO dispensers of the OCEAN Tower series are used for dispensing liquefied propane butane (LPG) and  windshield washer fluid (WSE) at public filling stations. They are modern single-sided or double-sided dispensers with two to twelve dispensing hoses (max. two dispensing hoses on each side of the dispenser) for delivering any of two products. These dispensers of modern construction are equipped with high-quality Japanese TATSUNO hydraulics and a reliable electronic counter. The WSE dispensing module can be supplemented with a suction pump and a storage tank with a capacity of 250L.All combined dispensers in the OCEAN Tower type series are operated both in the manual mode (i.e. off-line), and in the automatic mode, where the fuel dispenser is linked with the kiosk control system and the data concerning volume, amount and price are transmitted to POS.

Dispenser's documents:

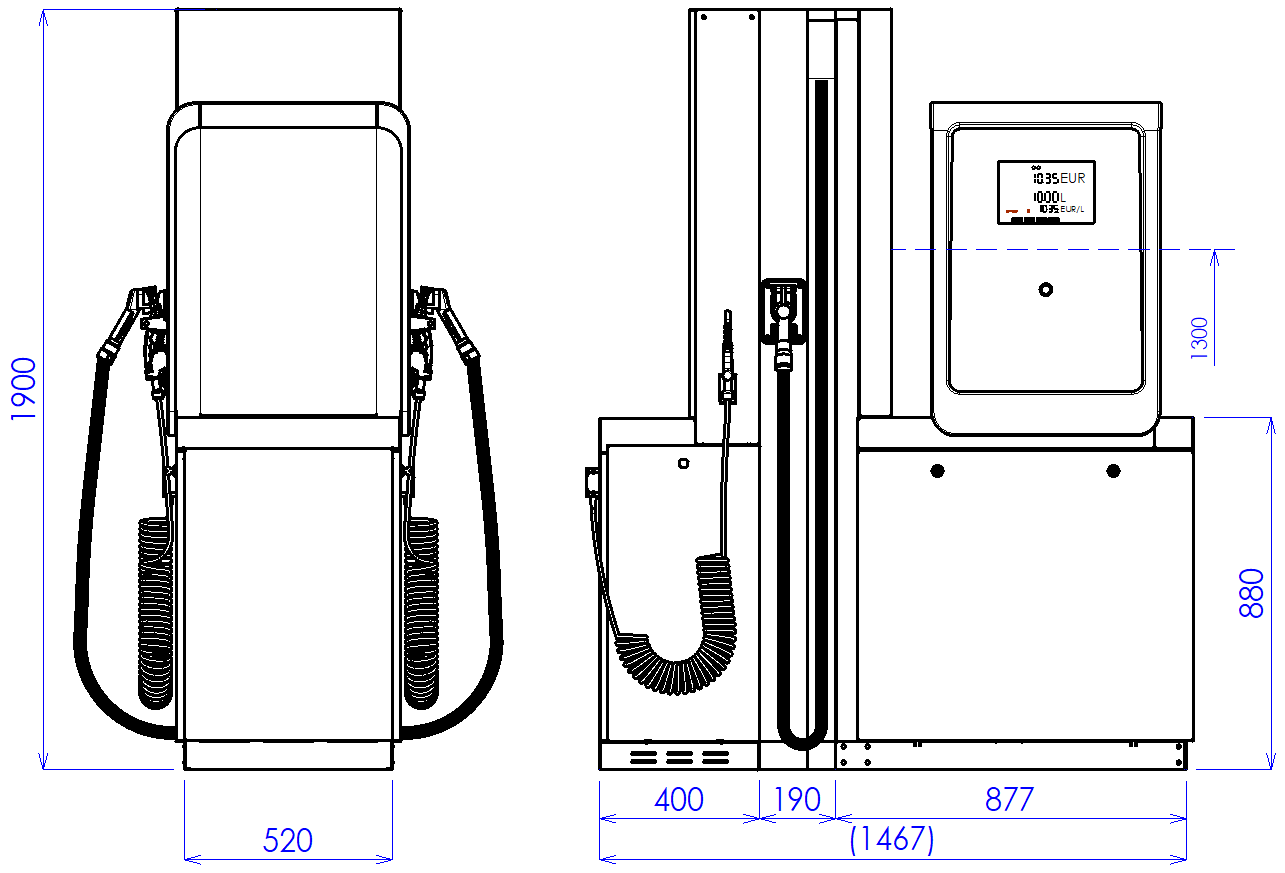

• Overview of dispenser models, dimensions
• Installation and user manuals
• ATEX certificates
• MID certificates
• EU Declaration of Conformity

Specifications

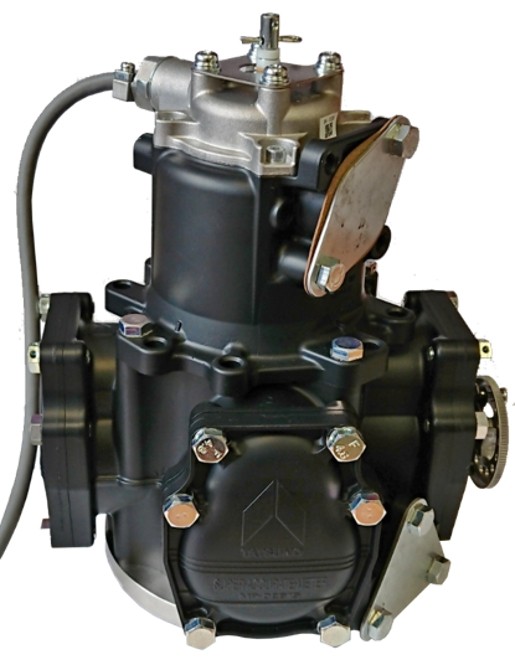

• New type of long life and high accurate hydraulics TATSUNO (Japan)
• Reliable electronic counter PDEX5

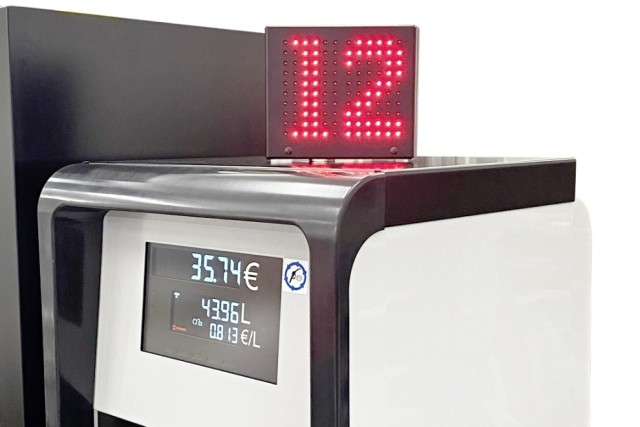

• LCD displays (7-6.5-5), or multimedia displays with electronically controlled LED backlight
• Modern compact design
• Accurate pulse generators TATSUNO (Japan) with encrypted AES 128 data transfer
• Electronic totalizers and electromechanical totalizer for every dispensing nozzle

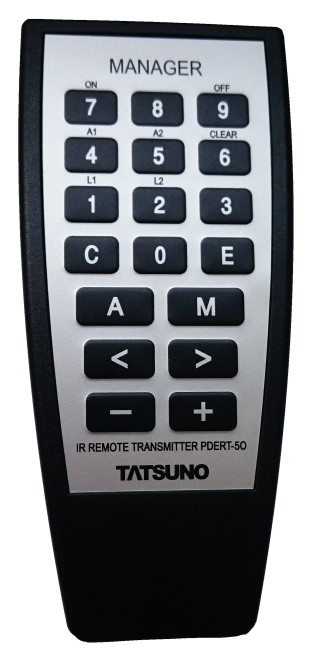

• Infra-red remote controller for dispenser setup

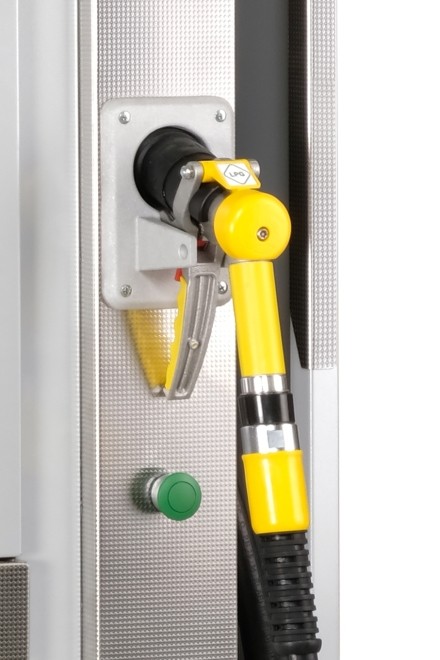

• Dispensing nozzles TATSUNO Ultra (Japan) or ZVA-ELAFLEX (Germany)
• Reliable hose retraction system with long active nozzle radius
• WSE spiral dispensing hoses with nozzle radius 6 m
• Proportional valves for preselection of dispensed amount/volume
• 4 or 12buttons keypad for amount/volume preselection

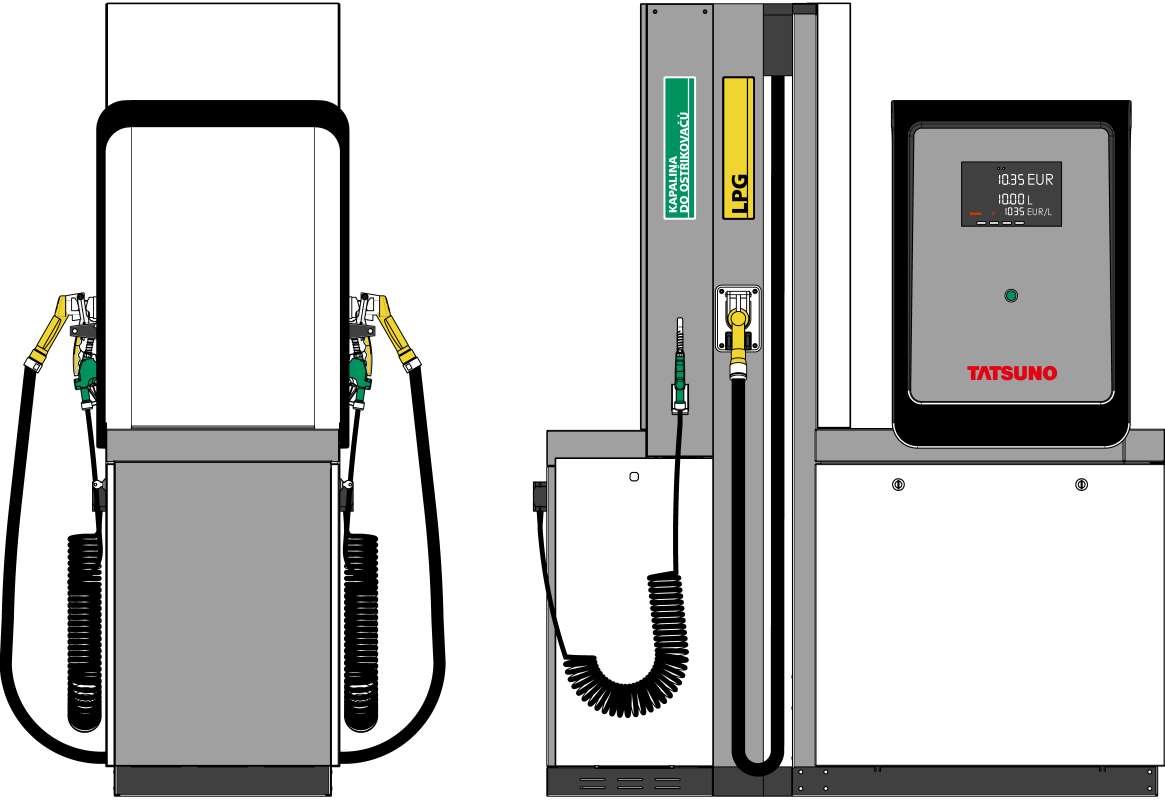

• Color design according to the customer's wishes, standard design - see section Basic models
• Possibility to install multimedia module or payment terminal - on customers request
• LPG temperature volume correction to volume at 15°C (optional)

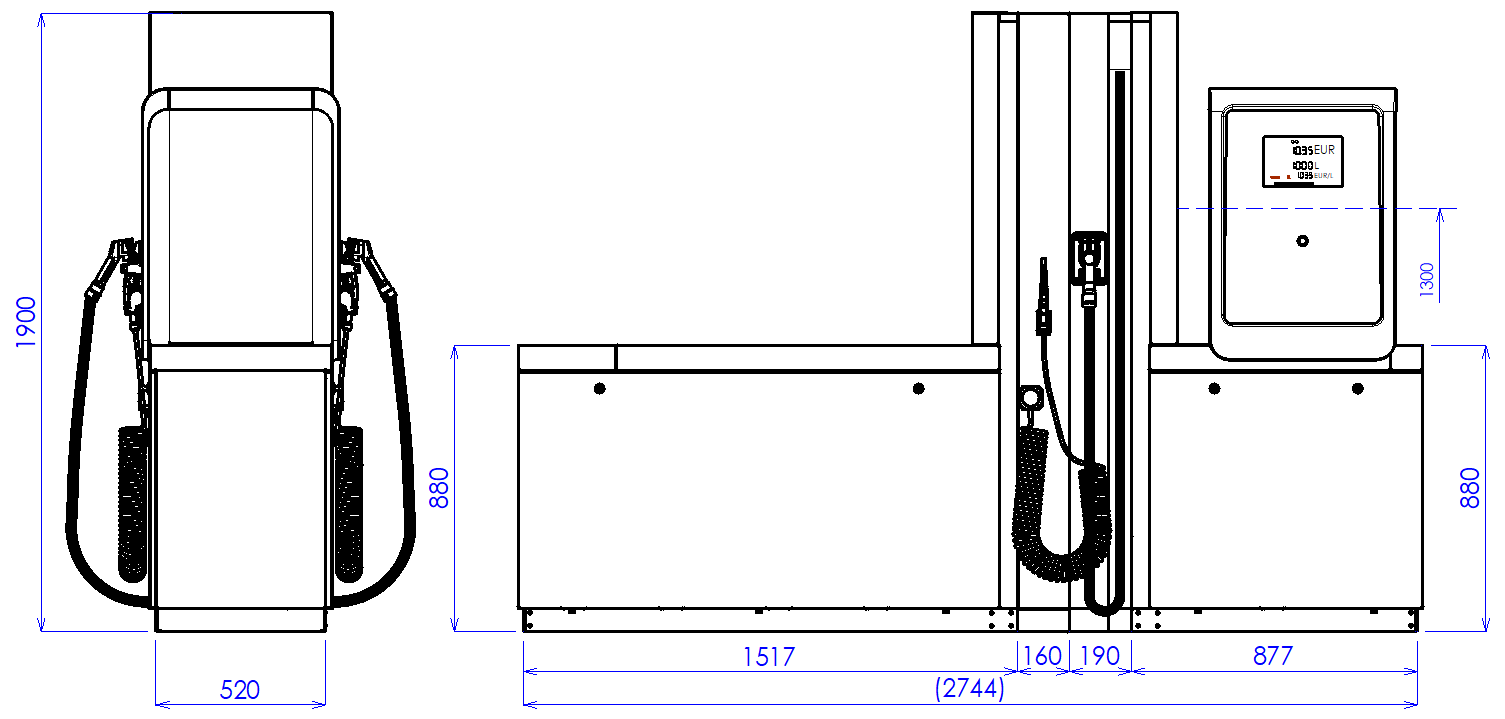

• WSE module variant with suction pump and storage tank 250L (optional)
• Simultaneous deliveries from two hoses on one side of the dispenser (optional)
• Diagnostic line (optional)

Technical Specifications



Flow rate - LPG:        - WSE:	35-50 L/min. 10 L/min.
Accuracy of dispensing - LPG:        - WSE:	± 0.30% (at min. delivery 5 litres) ± 0.15% (at min. delivery 2 litres)
Maximum pressure - LPG:        - WSE:	1.8 MPa 0.35 MPa
Counter power supply:	230V +10% -15%, 50Hz max.300VA
Power supply of the switching elements:	+24VDC
Operating temperature:	-20°C ~ +40°C
