OCEAN Tower combi - Petrol & LPG & WSE

multiproduct combined dispensers
3 to 12 hoses / 3 to 6 products
gasoline, (bio)diesel, LPG, WSE
WSE - windshield washer fluid

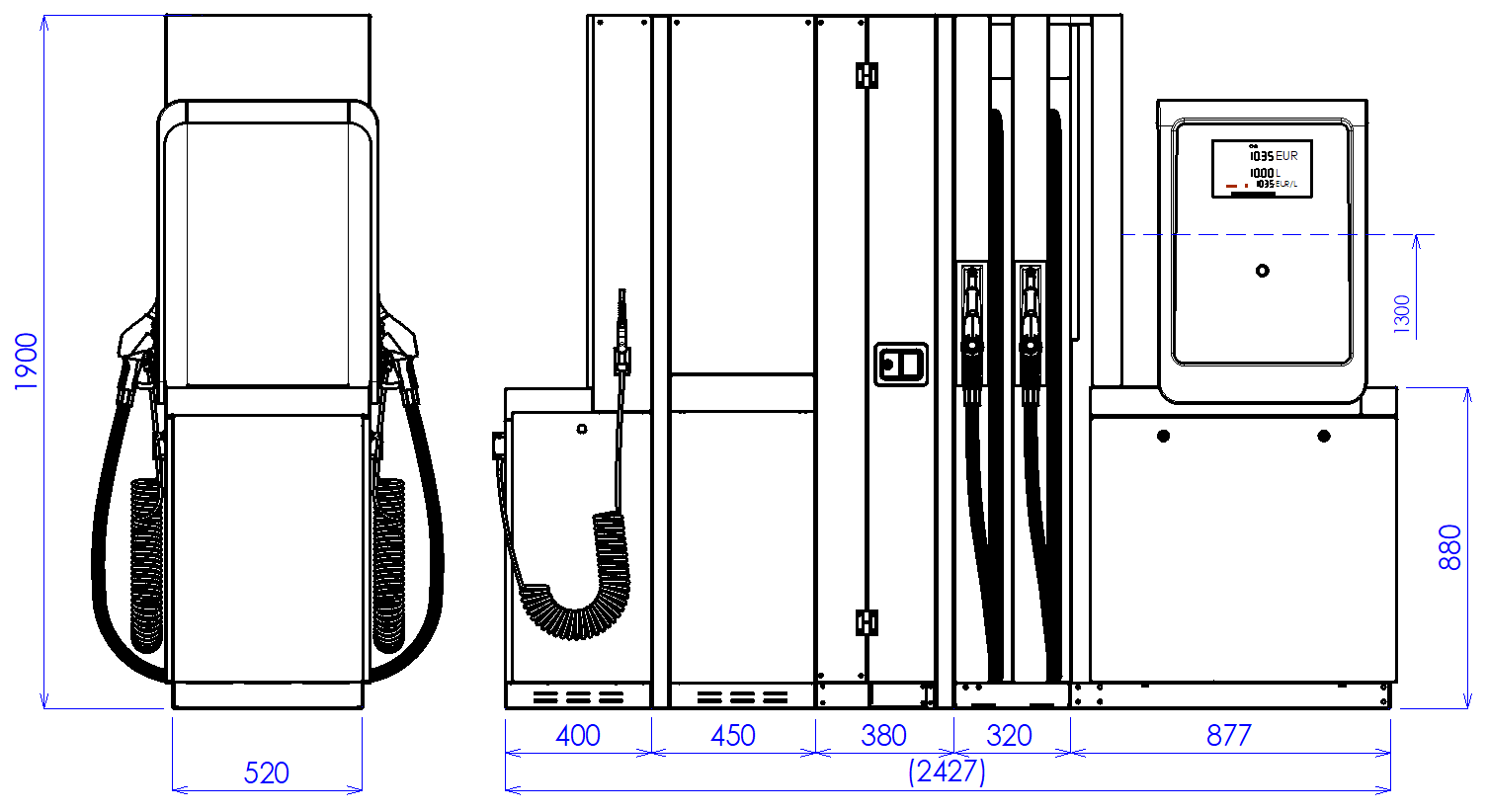

height 1900 mm

TATSUNO MVP-X hydraulicsLPG piston meter TATSUNO FM-1029AdBlue piston meter TATSUNO FM-1022TATSUNO Ultra nozzles FN-1024 (40 L/min)TATSUNO Ultra nozzles FN-1025 (VR, 40 L/min)TATSUNO Ultra nozzles FN-1029 (80 L/min)LED site numberCabinet with OPT12 buttons preselection keypad4 buttons preselection keypad


Specifications
These combined TATSUNO dispensers of the OCEAN Tower series are used for dispensing liquid petroleum products (diesel, petrol, ethanol E85 ...), liquefied propane butane (LPG) and  windshield washer fluid (WSE) at public filling stations. They are modern single-sided or double-sided dispensers with three to twelve dispensing hoses (max. six dispensing hoses on each side of the dispenser) for delivering any of 3 to 6 products. These dispensers of modern construction are equipped with high-quality Japanese TATSUNO hydraulics and a reliable electronic counter. All combined dispensers in the OCEAN Tower type series are operated both in the manual mode (i.e. off-line), and in the automatic mode, where the fuel dispenser is linked with the kiosk control system and the data concerning volume, amount and price are transmitted to POS.

Dispenser's documents:
  • Overview of dispenser models, dimensions
  • Installation and user manuals
  • ATEX certificates
  • MID certificates
  • Vapour recovery system certificates
  • EU Declaration of Conformity


Specifications

  • New type of long life and high accurate hydraulics TATSUNO MVP-X (Japan)
  • Reliable electronic counter PDEX5
  • LCD displays (7-6.5-5), or multimedia displays with electronically controlled LED backlight
  • Modern compact design
  • Accurate pulse generators TATSUNO (Japan) with encrypted AES 128 data transfer
  • Electronic totalizers and electromechanical totalizer for every dispensing nozzle
  • Infra-red remote controller for dispenser setup
  • Vapour recovery system with electronic signalling and monitoring system (optionally)
  • Dispensing nozzles TATSUNO Ultra (Japan), ZVA-ELAFLEX (Germany) and LPG Group (Italy)
  • Reliable hose retraction system with long active nozzle radius
  • WSE spiral dispensing hoses with nozzle radius 6 m
  • Proportional valves for preselection of dispensed amount/volume
  • 4 or 12buttons keypad for amount/volume preselection
  • MIN/MAX flow button (optionally) - 130/80 or 80/40 or 40/5 L/min. (motobikes)
  • Color design according to the customer's wishes, standard design - see section Basic models
  • Possibility to install multimedia module or payment terminal - on customers request
  • Petrol and LPG temperature volume correction to volume at 15°C (optional)
  • WSE module variant with suction pump and storage tank 250L (optional)
  • Simultaneous deliveries from two hoses on one side of the dispenser, diesel/petrol/LPG + WSE (optional)
  • Diagnostic line (optional)


Technical Specifications


Flow rate:
- petrol:



standard 40 L/min.
high 80 L/min.
ultra high 130 L/min. to 150 L/min.
- LPG:
- WSE:
35-50 L/min.
10 L/min.
Accuracy of dispensing
- petrol and WSE:
- LPG:

± 0.15% (at min. delivery 2 litres)
± 0.30% (at min. delivery 5 litres)
Maximum pressure:


0.25 MPa (petrol)
1.8 MPa (LPG)
0.35 MPa (WSE)
Electric motors:thrее-phase, 3x400V/50Hz, 0.75kW, 1395 rpm
Counter power supply:

230V +10% -15%, 50Hz
max.300VA
Power supply of the switching elements:+24VDC
Operating temperature:-20°C ~ +40°C
Basic models



STANDARD COLOURS
(white = RAL 9016; silver = RAL 9006, black = RAL 9005)
OCEAN BMP4012.OWD + MOD4012.OWD/LPG + MOD4012.OWD/WSE
1 petrol product, 2 hoses + 2 LPG hoses + 2 WSE spiral hoses

OCEAN BMP4024.OWD + MOD4012.OWD/LPG + MOD4012.OWD/WSE
2 petrol products, 4 hoses + 2 LPG hoses + 2 WSE spiral hoses


OCEAN BMP4036.OWD + MOD4012.OWD/LPG + MOD4012.OWD/WSE
3 petrol products, 6 hoses + 2 LPG hoses + 2 WSE spiral hoses


OCEAN BMP4048.OWD + MOD4012.OWD/LPG + MOD4012.OWD/WSE
4 petrol product, 8 hoses + 2 LPG hoses + 2 WSE spiral hoses
