TATSUNO Ultra FN-1024
petrol dispensing nozzle
maximum flow 45 L/min
without vapour recovery
spout diameters:
- Ø21mm (gasoline)
- Ø25mm (diesel)
maximum flow 45 L/min
without vapour recovery
spout diameters:
- Ø21mm (gasoline)
- Ø25mm (diesel)
Files for Download :
- Bulletin / pdfDownload
Specifications
TATSUNO Ultra dispensing nozzles type FN-1024 are designed for dispensing diesel, biodiesel, kerosene, gasoline and mixtures of gasoline and ethanol (up to 10% ethanol). It is produced in several color versions, with two variants of spout diameter - Ø21mm (for gasoline) or Ø25mm (for diesel). The main advantages of these nozzles are especially low weight, very low force needed to open the nozzle (valve opening), the ability to automatically shut-off the nozzle at very low flow, fast tank filling (fewer nozzle shut-offs in contact with air bubbles) and long life. All nozzles can be supplemented with a colored plastic cover (so-called nozzle talker) where it is possible to place an advertisement or more detailed technical data regarding the delivered fuel.
Additional product documentation:
Additional product documentation:
Specification
- damage-resistant all-metal pistol body
- electrically conductive antibacterial plastic grip
- plastic guard lever with magnet and hook for hanging in a plastic holder TATSUNO EUROPE
- lever with safety lock in two positions/flows
- spout with two diameters Ø21mm (gasoline) and Ø25mm (diesel)
- automatic shut-off mechanism after immersing the end of the spout in the liquid
- replaceable stainless steel filter at the nozzle inlet
- rubber protection against oil splashes (oil guard, Ø54mm)
- fully compatible connection with ELAFLEX hoses

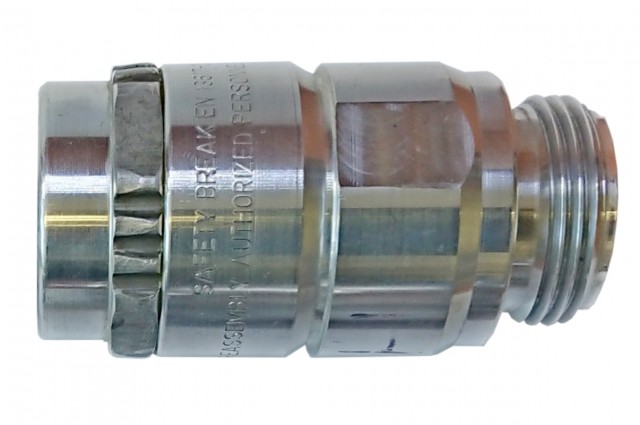

- possibility of connecting a breakaway coupling, eg Elaflex PSB 16,0x1 (optional)

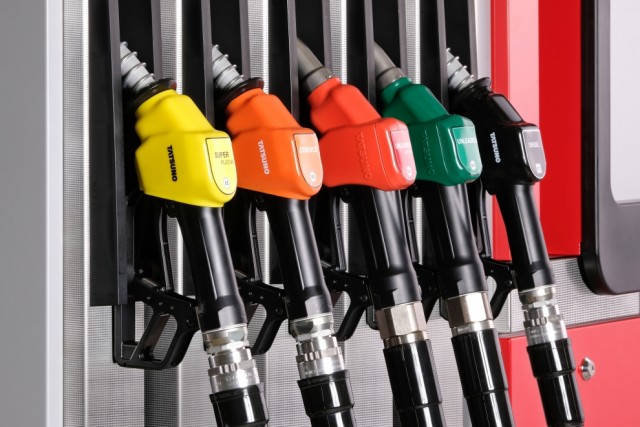

- wide range of colors (optional)
- additional valve for automatic shut-off of the nozzle when the petrol pressure is released (optional)

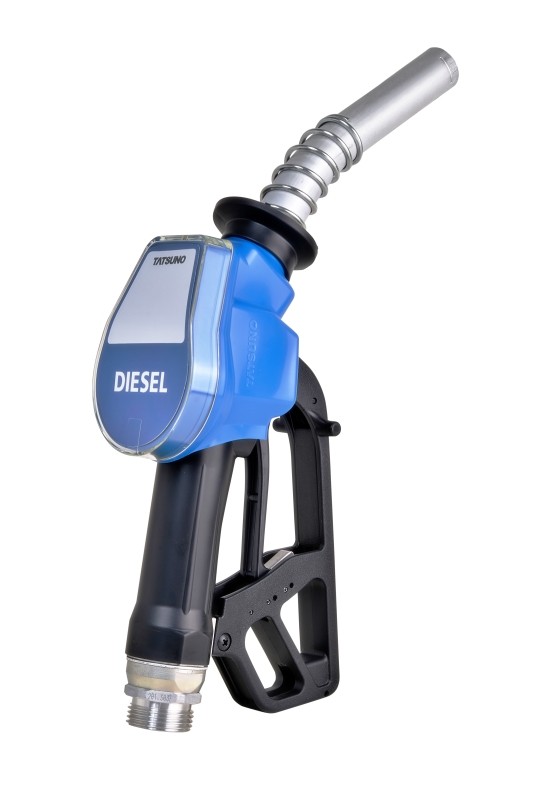

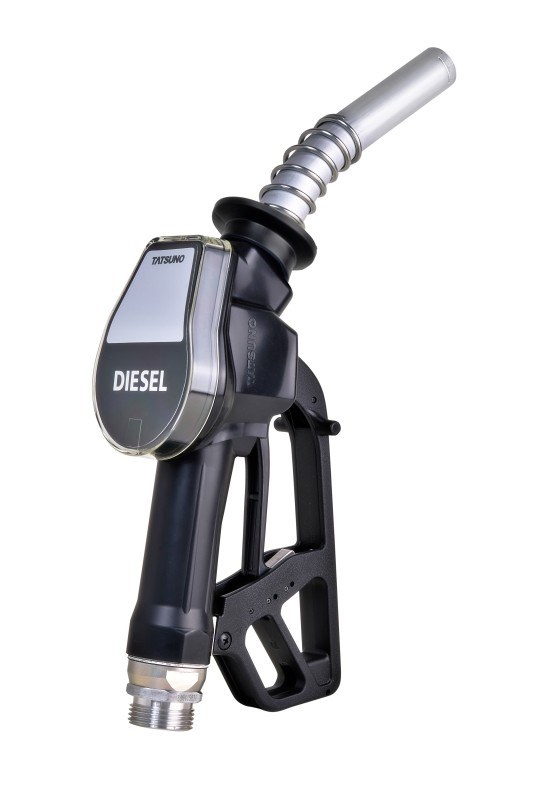

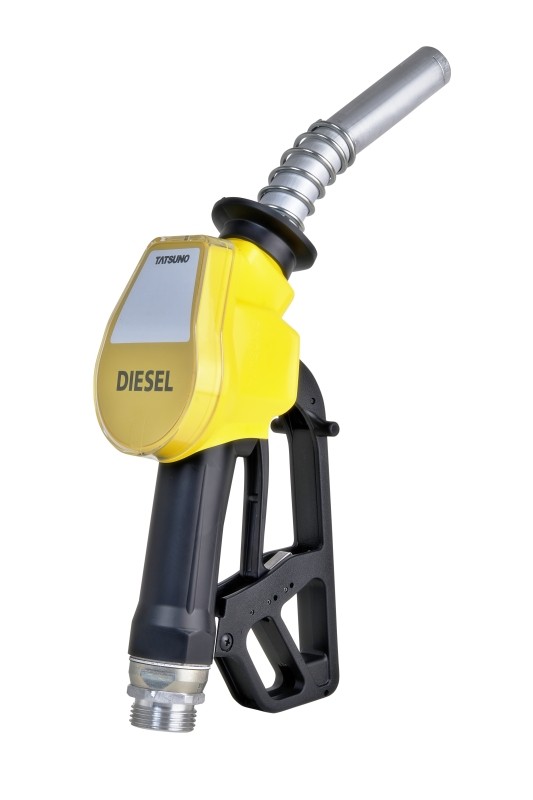

- colored advertising plastic cover - nozzle talker (optional)
Technical Specifications
| Maximum flow: | 45 L/min |
| Maximum pressure: | 0.49 MPa |
| Viscosity range: | 0.3 to 6 mPa.s |
| Spout disameter: | Ø25mm (diesel) Ø21mm (gasoline) |
| Connection (thread): | G1" (inner thread) |
| Weight: | ~ 900 grams |
| Working temperature: | –20°C ÷ +50°C |
Basic models
.jpg "BMP4012.OWD") |
| Tatsuno Ultra FN-1024 (Ø25) diesel nozzle max. 45 L/min, black, with spout diameter Ø25, anchor spring, oil guard Ø54, swivel FJ-1006-P02 with G1" (outer thread) for hose interconnection |
(800)rotated1.JPG "BMP4024.OWD") |
| Tatsuno Ultra FN-1024 (Ø21) gasoline nozzle max. 45 L/min, green, with spout diameter Ø21, anchor spring, oil guard Ø54, swivel FJ-1006-P02 with G1" (outer thread) for hose interconnection |
