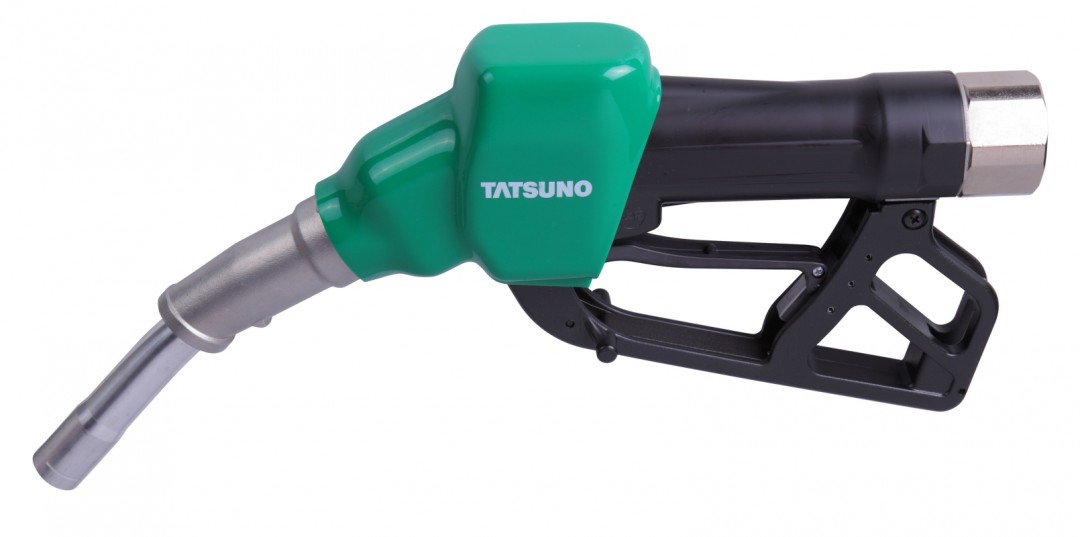

TATSUNO Ultra FN-1025

TATSUNO Ultra dispensing nozzles type FN-1025 are designed for dispensing gasoline and mixtures of gasoline and ethanol (up to 10% ethanol). It is produced in several colors with the Ø21mm spout diameter. The nozzles are equipped with a sophisticated system for the vapour recovery system from the vicinity of the spout with unrivaled tightness and the reliability of the ON/OFF function of the vapour recovery valve. The ON/OFF valve switches only if fuel flows through the nozzle, ie it is independent of the nozzle position. The great advantages of these nozzles are also low weight, very little force needed to close the nozzle (valve opening), the ability to automatically shut-off the nozzle even at very low flow, fast tank filling (fewer nozzle shut-offs in contact with air bubbles), and long life. All nozzles can be supplemented with a colored plastic cover (so-called nozzle talker) where it is possible to place an advertisement or more detailed technical data regarding the delivered fuel.

Additional product documentation:

• ATEX certificate
• Instructions and Maintenance Manual
• EU Attestation of Conformity
• Vapour Recovery Systems Certificates

Specification

• damage-resistant all-metal pistol body
• electrically conductive antibacterial plastic grip

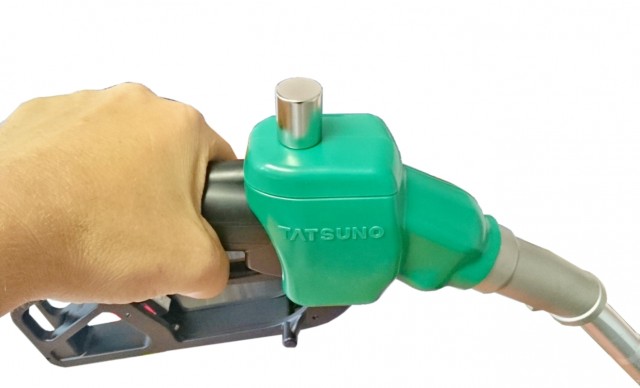

• plastic guard lever with magnet and hook for hanging in a plastic holder TATSUNO EUROPE
• lever with safety lock in two positions/flows
• spout diameter Ø21mm
• vapour recovery system with ON/FF valve
• automatic shut-off mechanism after immersing the end of the spout in the liquid
• replaceable stainless steel filter at the nozzle inlet
• fully compatible connection with ELAFLEX hoses (M34x1.5)
• breakaway coupling (optional)
• wide range of colors (optional)
• additional valve for automatic shut-off of the nozzle when the petrol pressure is released (optional)

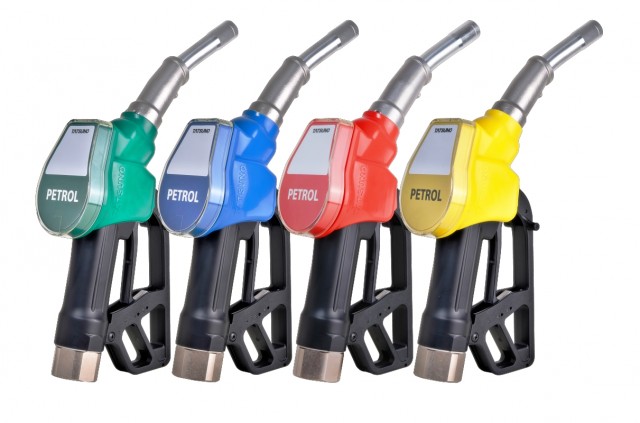

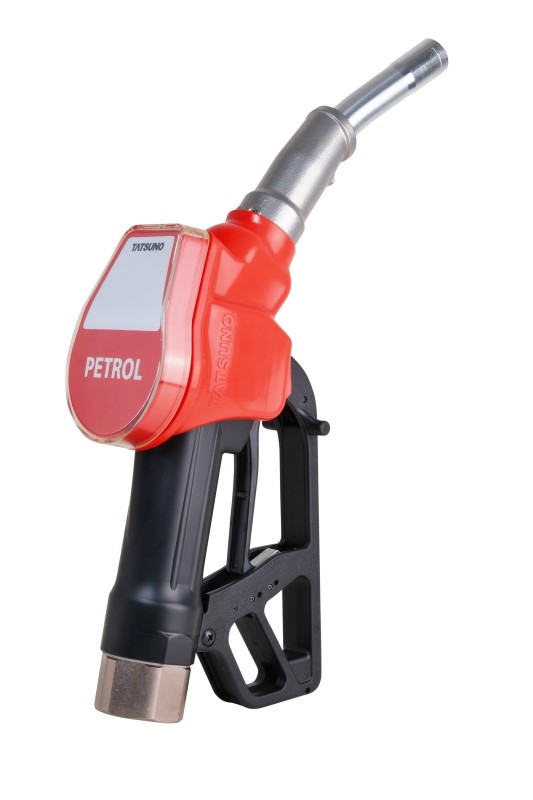

• colored advertising plastic cover - nozzle talker (optional)

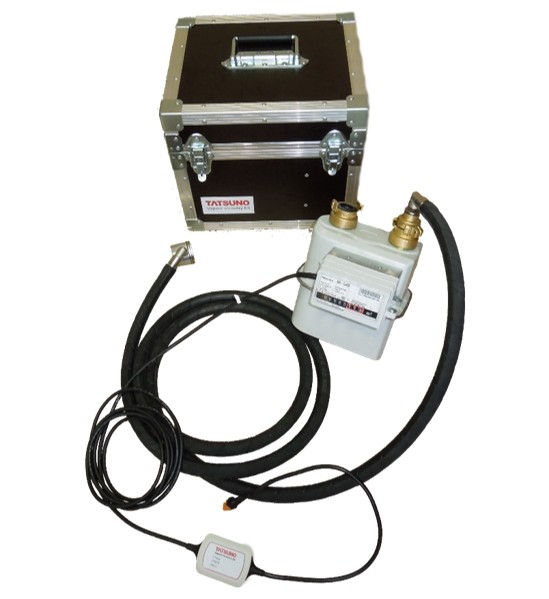

• service measuring set TATSUNO VR kit for measuring and setting the dispenser VR system (optional)
